01
Product Overview

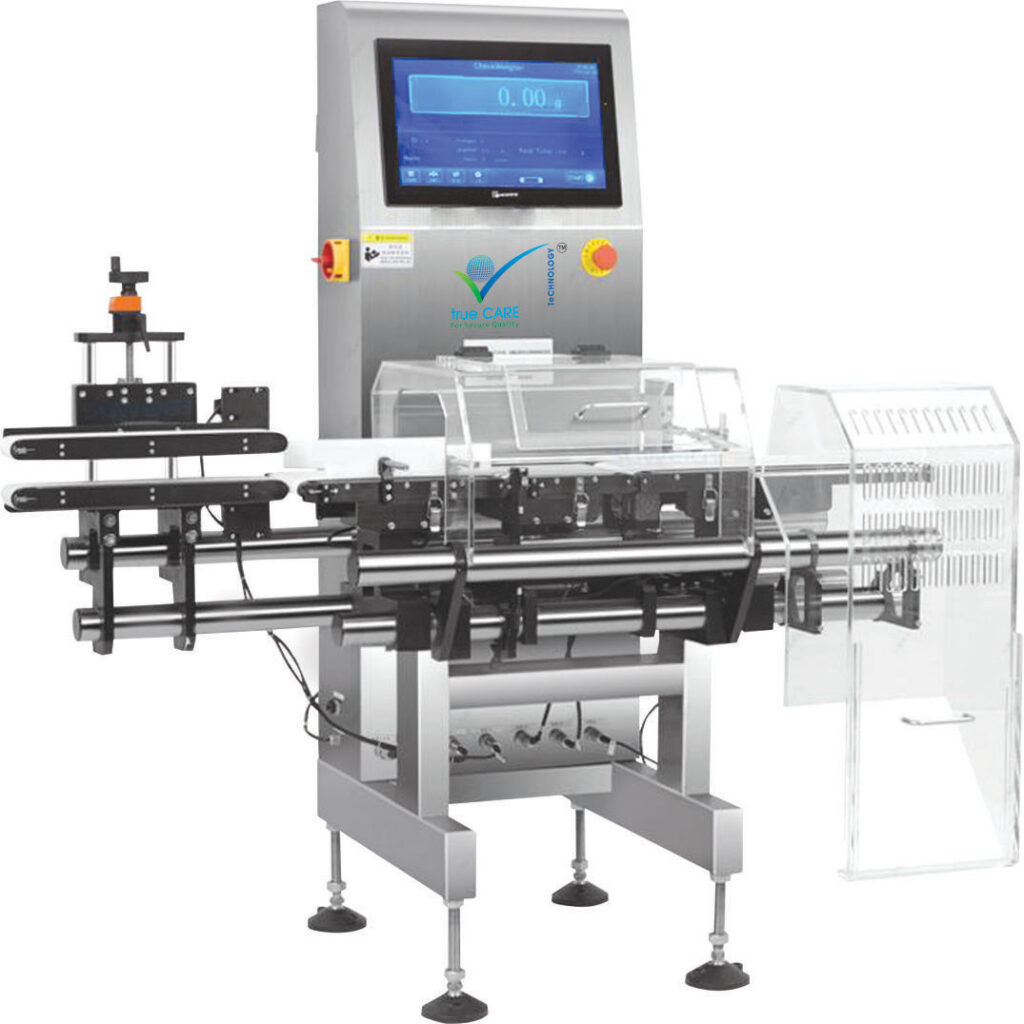

The TrueCare Ultra High-Speed Check Weigher (TCW-100HH and TCW-150HH) is built for the fastest packaging lines, where standard checkweighers become the bottleneck. It weighs products from 2 to 300 g at up to 450 pcs/min with belt speeds of 120 m/min, keeping pace with high-speed flow wrappers, cartoners and pouch machines. Advanced load-cell filtering keeps readings stable at full speed, and a fast pusher or air-jet rejector removes off-weight packs without slowing the line. Built in SUS304 stainless steel with a quick-release belt for GMP and HACCP hygiene, it suits high-volume pharmaceutical, dairy, confectionery and FMCG lines.
02
Applications
- Our automatic high speed check-weigher excel in detecting weights, distinguishing upper and lower limits, and grading products across automated assembly lines and logistics systems.
- True Care Technology's online check-weigher are designed to weigh a wide array of products:
- Pharmaceuticals
- Cosmetics
- Dairy products
- Sugar
- Chemical raw materials
- Meat and sausages
- Our TCW Online Check-weigher ensure real-time monitoring and verification of product weights during production, minimizing the risk of under or overfilling and ensuring compliance with standards.
03
Standard Features
- Provides high-speed, high-sensitivity, and stable dynamic weight verification.
- Simple mechanical structure with a buckle-type conveyor belt for easy disassembly, cleaning, and maintenance, compliant with GMP and HACCP regulations.
- Large touch screen interface for intuitive operation, supporting multiple languages and featuring extensive data storage capacity.
- Efficient rejecter system ensures accurate sorting.
- Three-level password protection restricts parameter setting access to managers only.
- Simplified user parameter settings for straightforward operation.
- Demonstrates exceptional environmental adaptability and stability, ensuring reliable performance in industrial environments.
- Stores data from 100 product tests, facilitating user convenience.
04
Technical Specifications
| Parameter | Specification |
|---|---|
| Weighing range | 2-300 g |
| Minimum scale | 1 g |
| Checking speed | 450 pcs/Min |
| Belt speed | 120 m/min |
| Operation Way | Touch operation |
| Conveying direction | Facing the touch screen from left to right (can be customized) |
| Rejection method | Push Rejection / Air blow rejection (optional) |
| Belt height from the ground | 750±50mm（can be customized) |
| Machine material | Stainless steel (SUS304) |
| Power supply | 220V 50-60Hz |
| Power | 200 w |
| Weight | 150 kg |
| Windshiled | 8mm Thick acrylic (to avoid airflow interference) |
| Feet | M20stainless steel with shock-absorbing rubber pad |
| External air source | 0.2-0.6Mpa |
| Air pressure port | Φ8mm |
| Working environment | Temperature： 0℃～40℃，Humidity：30%～95% |
| Product size limit | |
| Length | 100 mm |
| Width | 100 mm |
| Weighing range | 2-500 g |
| Minimum scale | 1 g |
| Checking speed | 300 pcs/Min |
| Belt speed | 110 m/mi |
| Operation Way | Touch operation |
| Rejection method | Push rejection / Air blow rejection (optional) |
| Belt height from the ground | 750±50mm（can be customized) |
| Conveying direction | Facing the touch screen from left to right (can be customized) |
| Machine material | Stainless steel (SUS304) |
| Power supply | 220V 50-60Hz |
| Power | 500 w |
| Weight | 170 kg |
| Windshiled | 8mm Thick acrylic (to avoid airflow interference) |
| Feet | M20stainless steel with shock-absorbing rubber pad |
| External air source | 0.2-0.6Mpa |
| Air pressure port | Φ8mm |
| Working environment | Temperature： 0℃～40℃，Humidity：30%～95% |
