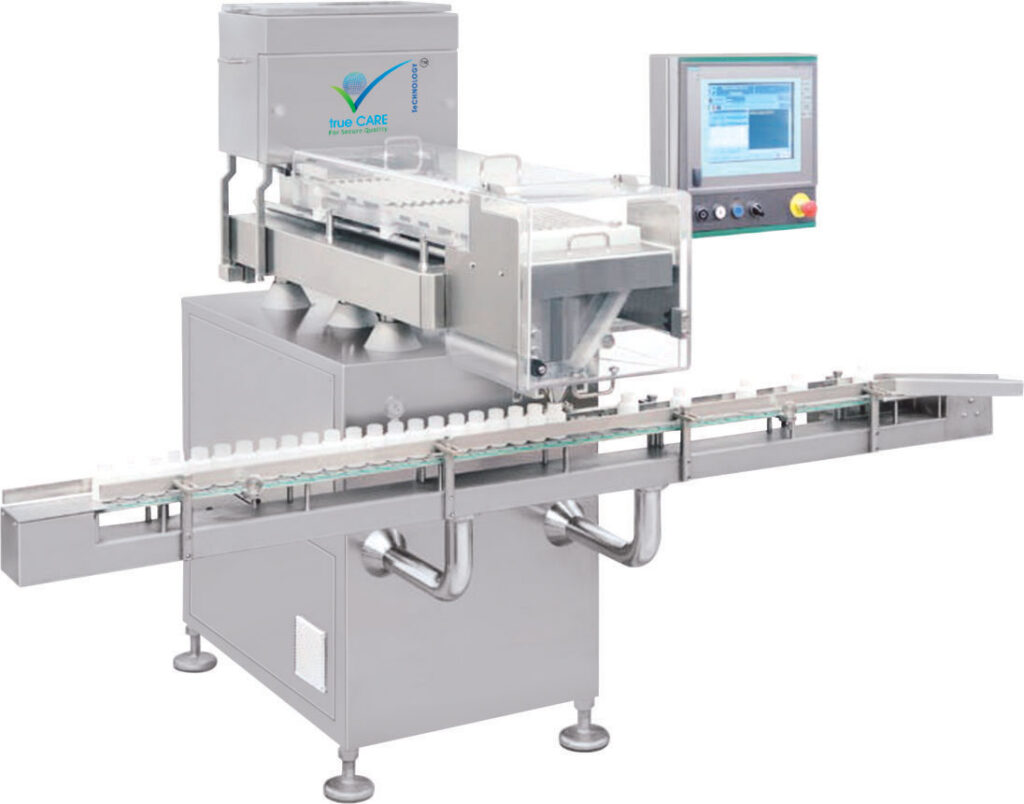

Tablet Counting Machine
The trueCARE Tablet Counting Machine is a specialized machine used in the pharmaceutical industry to automate the counting and packaging of tablets or capsules. It can detect any miscounts or irregular tablets and automatically reject them to ensure accurate counts.
Machine Description
The trueCARE Tablet Counting Machine is a specialized machine used in the pharmaceutical industry to automate the counting and packaging of tablets or capsules. It can detect any miscounts or irregular tablets and automatically reject them to ensure accurate counts. Once the correct number of tablets is counted, the machine fills them into bottles. Additionally, it may cap the bottles, seal blister packs, or apply labels with essential information such as product details, dosage instructions, and batch numbers.
Applications
Standard Features
- It guarantees 100% counting accuracy by employing sensors capable of detecting tablets of various shapes and sizes.
- An automatic bottle height adjustment system allows for the use of different container sizes. By utilizing different discharge funnels, the machine can accommodate containers of varying heights.
- The machine offers ease and speed in changing products, allowing for efficient switching between different tablet types or configurations.
- It features a tool-free cleaning system for the product contact surface, making it easy to clean and facilitating quick changeover between different products.
- The machine is designed to be dust-free, which not only ensures the cleanliness of the working environment but also contributes to the durability and longevity of the machine.
- The machine is equipped with PLC controls and an HMI touch screen interface, enabling user-friendly operation and precise control over counting and filling parameters.
- It has memory-saving capabilities, with the ability to store data for up to 40 different products, facilitating efficient product changeovers and minimizing setup time.
- All contact parts of the machine are made of stainless steel 316/316L, which is compliant with food-grade standards, ensuring the safety and quality of the counted tablets.
- The machine is designed in compliance with Good Manufacturing Practices (GMP), meeting the regulatory requirements for pharmaceutical manufacturing.
Technical Specification
| Machine Description | TTC-8Z Desktop | TTC-8 | TTC-12A TTC-12B |
TTC-16A TTC-16B |
TTC-24A TTC-24B |
TTC-32A | TTC-48A |
|---|---|---|---|---|---|---|---|
| Applicable | Model A: 00-5# capsules, soft gels, Ø 5.5-12 normal tablets, special shape tablets, coating tablets, 03-12 pills Model B: 00-5# capsules, soft gels, < Ø 22 normal tablets, special shape tablets, coating tablets, < Ø 20 pills |
||||||
| Output (Bottles/Min.) | 10 – 30 | 10 – 40 | 20 – 40 | 20 – 80 | 20 – 90 | 40 – 120 | 40 – 150 |
| Filling Range | 2 – 9999 | ||||||
| Power (kW) | 0.6 | 0.7 | 0.8 | 1.2 | 1.5 | 2.2 | 2.5 |
| Overall Dimension (LxWxH) mm | 660x1280x780 | 1200x1280x1560 | 1400x1400x1560 1600x1600x1580 |
1600x1400x1560 1800x1600x1560 |
1800x1400x1680 2000x1600x1680 |
2200x1400x1680 | 2200x1400x1680 |
| Total Weight (Kg) | 120 | 180 | 220 270 |
350 410 |
400 460 |
650 | 750 |
| Capacity is subject to the type and size of the bottle and tablet, as well as the quantity filled per bottle. | |||||||
