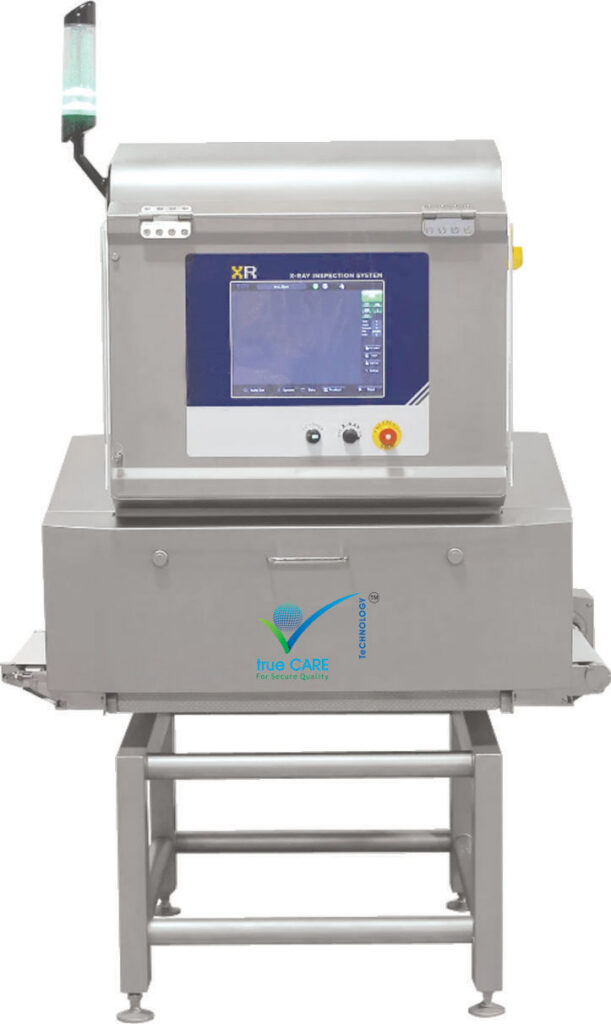

Standard X-ray Inspection System
The trueCARE’s SX Standard series of X-Ray inspection systems is capable of inspecting a wide range of products. Besides detecting all metals, users can identify glass, hard plastic, rubber, ceramic, bone, and other mid or high-density foreign materials.
Machine Description
The trueCARE’s SX Standard series of X-Ray inspection systems is capable of inspecting a wide range of products. Besides detecting all metals, users can identify glass, hard plastic, rubber, ceramic, bone, and other mid or high-density foreign materials. Our TXR standard performance series, powered by generators ranging from 210 to 480 watts, delivers remarkable sensitivity across nearly all product types. These systems can detect foreign bodies as small as 0.2mm. Plastic conveyor belting, small bones in poultry or red meat, rubber and gasket pieces, and even certain organic materials are successfully detected using the TCT’s-SX series of X-ray inspection systems.
Applications
- True Care Technology’s TXR-S series of X-rays covers nearly every product type and size on the market.
- Both packaged and unpackaged products can be easily inspected with the TXR standard series of X-rays, ensuring the highest levels of sensitivity.
- Customizable with various generator types, strengths, detector configurations, software options, and component choices.
- Tailored to fit each product and process precisely, delivering optimal performance and sensitivity.
- Versatile and reliable inspection regardless of production environment, speed, or product type.
Standard Features
- Detects metallic and non-metallic contaminants including glass, ceramic, stone, bone, hard rubber, and hard plastic.
- Identifies breakage, displacement, and cracks.
- System automatically identifies and removes packages suspected of containing contaminants when paired with optional rejection conveyor.
- TCT’s X-ray systems use proprietary software allowing customization of generator strength, speed, and algorithms for each program.
- Easily navigated software enables quick program changes. Real-time product imaging aids in swift contaminant identification.
- TXR X-rays provide comprehensive logs on production rates, times, and contamination percentages, accessible via HMI or downloadable through Ethernet or USB.
Provides remote technical and programming assistance to maximize uptime and performance.
Technical Specification
| Model | TXR-SX3012 | TXR-SX4016 | TXR-SX5025 | TXR-SX6016 | TXR-SX6030 | TXR-SX8035 | |
|---|---|---|---|---|---|---|---|
| X-ray Tube | 150w/210w/350w/480w Optional | ||||||
| Detector Width | 300 mm | 400mm | 500 mm | 600 mm | 600 mm | 800 mm | |
| Detector Height | 120 mm | 160 mm | 250 mm | 160 mm | 300 mm | 350 mm | |
| Detecting Sensitivity
(Ø mm) |
SS Ball | 0.3 | 0.3 | 0.3 | 0.3 | 0.4 | 0.4 |
| SS Wire | 0.2*2 | 0.2*2 | 0.2*2 | 0.2*2 | 0.3*2 | 0.3*2 | |
| Ceramic & Glass | 0.8 | 0.8 | 1.0 | 0.8 | 1.0 | 1.0 | |
| Belt Width | 300 mm | 400 mm | 500 mm | 600 mm | 600 mm | 800 mm | |
| Conveyor Belt Length | 1200 mm | 1300 mm | 1500 mm | 1500 mm | 1500 mm | 1500 mm | |
| Max. Weight on Belt | 10 kg | 20 kg | 20 kg | 25 kg | 25 kg | 50 kg | |
| Parameter Setting | By Intelegent Product Learing | ||||||
