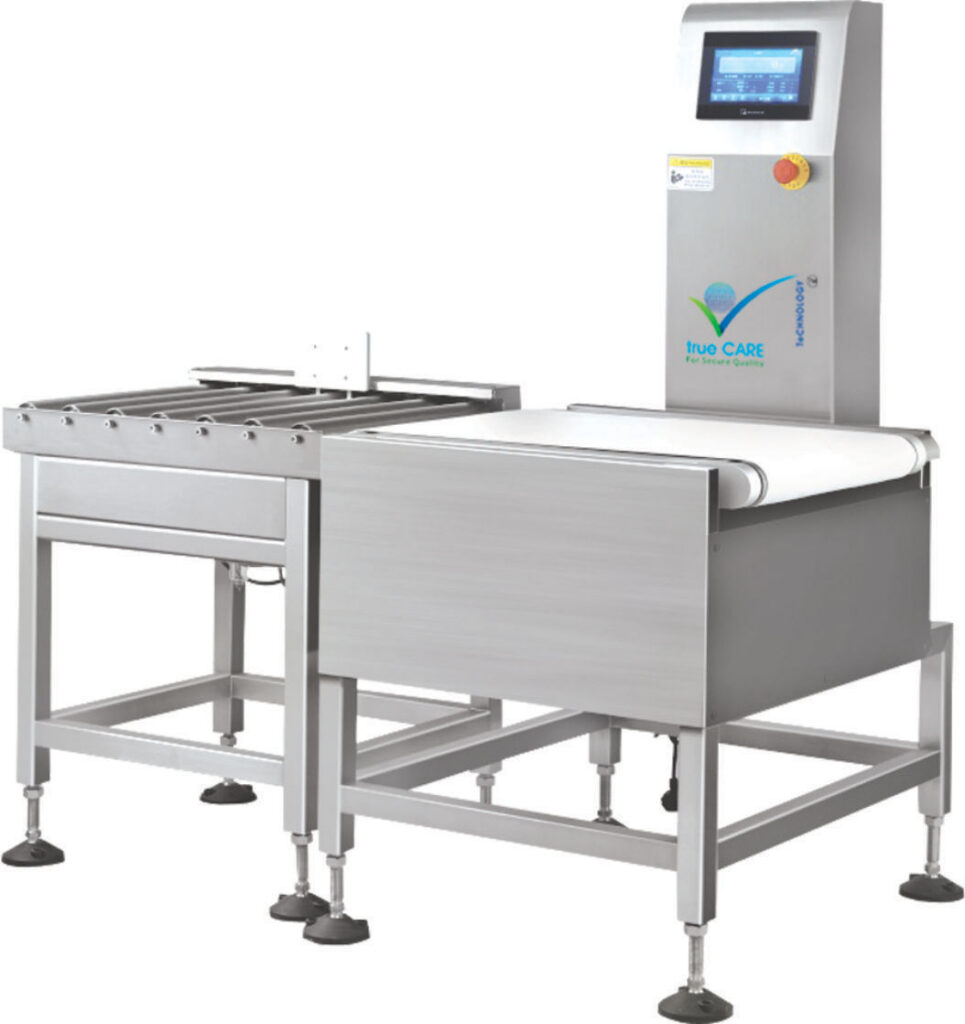

ONLINE CHECK WEIGHER FOR LARGE PACKAGE
The TCW check-weigher for large Package is an online, high-speed, high-sensitivity, and high-stability dynamic weight detection system designed for detecting packaging product weights to ensure quality standards.
Machine Description
The TCW check-weigher for large Package is an online, high-speed, high-sensitivity, and high-stability dynamic weight detection system designed for detecting packaging product weights to ensure quality standards. Widely utilized for online weight checks in industries such as large carton/bag packed food, agricultural products, consumables, and others, providing real-time monitoring, it confirms product weights during production, thereby ensuring accuracy and adherence to regulatory standards, the TCW check-weigher is engineered with advanced technology. Our solution guarantees accurate measurements even in high-speed environments, thereby minimizing the risk of under or overfilling.
Applications
Our automatic check-weigher excel in detecting weights, distinguishing upper and lower limits, and grading products across automated process and packaging lines in various industries.
• trueCARE Technology’s online check-weigher are designed to weigh a wide array of products:
- Pharmaceuticals
- Cosmetics
- Bakery items
- Fruits and vegetables
- Dairy products
- Spices
- Sugar
- Seafood
- Chemical raw materials
- Meat and sausages
- Hardware
- Toys, and more.
Our TCW Online Check-weigher ensure real-time monitoring and verification of product weights during Production & Packaging, minimizing the risk of under or overfilling and ensuring compliance with standards.
Standard Features
- Provides high-speed, high-sensitivity, and stable dynamic weight verification.
- Simple mechanical structure with a buckle-type conveyor belt for easy disassembly, cleaning, and maintenance, compliant with GMP and HACCP regulations.
- Large touch screen interface for intuitive operation, supporting multiple languages and featuring extensive data storage capacity.
- Efficient rejecter system ensures accurate sorting.
- Three-level password protection restricts parameter setting access to managers only.
- Simplified user parameter settings for straightforward operation.
- Demonstrates exceptional environmental adaptability and stability, ensuring reliable performance in industrial environments.
- Stores data from 100 product tests, facilitating user convenience.
Technical Specification
| Model Name | TCW-450 | TCW-600 | |
|---|---|---|---|
| Detecting Range | 0.05~25kg | 0.05~50kg | |
| Division Scale | 1g | 1g | |
| Accuracy | ±5/10 g | ±20 g | |
| Checking speed | 40 pcs/min | 30pcs/min | |
| Belt Speed | 60m/min | 40m/min | |
| Weighed Product Size | Width | 550mm | 800mm |
| Length | 450mm | 600mm | |
| Operation Screen | touch screen | ||
| Product Storage Quantity | 100 kinds | ||
| Rejecter Mode | Push Rejection | ||
| Belt height from the ground | 750±50mm（can be customized） | ||
| Machine material | Stainless steel（SUS304） | ||
| Power Supply | AC 220V, 1-Phase, 50/60 Hz | ||
| Power | 300w | 500w | |
| Windshield | Thick acrylic (to avoid airflow interference) | ||
| External air source | 0.2-0.6Mpa | ||
