Machine Description

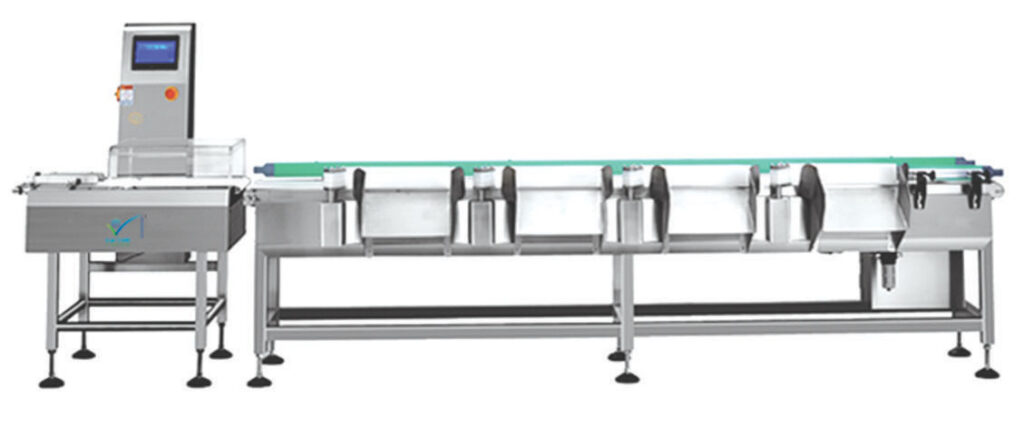

The weight sorting equipment is a device that automatically sorts products with high speed and accuracy based on their weight ranges. Users can define weight ranges according to specific requirements, enabling customized sorting based on product characteristics and quality standards. The TCW-MTS multi-tray sorting machine is designed for seamless integration into existing production lines, facilitating smooth workflow and operational continuity.
Applications
- The weight sorting equipment is a versatile solution catering to various industries, including seafood, poultry, aquatic products, and frozen goods.
- It enables seamless sorting of products based on their weights, contributing to streamlined operations and enhanced quality assurance.
- With its high-speed and high-accuracy capabilities, the equipment facilitates precise classification and sorting, thereby meeting the stringent requirements of modern industrial applications.
Standard Features
- High-speed, high-sensitivity, and high-stability dynamic weight verification.
- Buckle design facilitates easy cleaning and disassembly, ensuring simplicity in maintenance.
- Equipped with a touch screen for user-friendly functionality, supporting multiple languages and data storage with large memory capacity.
- Features standard weight sorting zones
- Simplified user parameter settings enable easy operation.
- Demonstrates excellent environmental adaptability and stability, ensuring reliable performance in industrial settings.
- The weight sorting equipment automates the sorting process, significantly reducing manual intervention and improving operation
Technical Specification
| Model Name |
TCW-MTS |
| Weight Range |
5-3000g |
| Accuracy |
±03.-0.5g |
| Maximum Speed |
60pcs/min |
| Division scale |
0.1g |
| Power Consumption |
0.75KW |
| Belt speed |
50m/min |
| Main Material |
Stainless steel (SUS304) & food grade resin |
| Belt width |
300mm |
| Operation Height |
800~950mm (can be customized) |
| Power Supply |
AC 220V , 1-Phase , 50/60 Hz |
