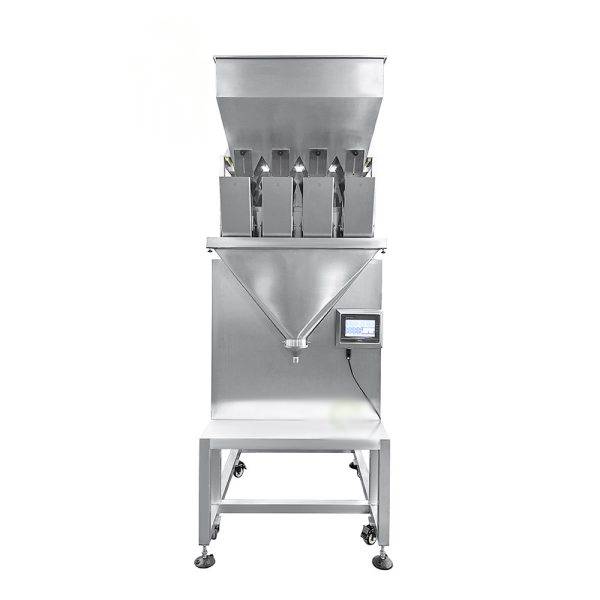

LINEAR WEIGH FILLER MACHINE
The Linear Weigh Filler Machine is an automatic filling solution designed for precise and efficient weighing and dispensing of granular, free-flowing, or semi-free-flowing products.
Machine Description
The Linear Weigh Filler Machine is an automatic filling solution designed for precise and efficient weighing and dispensing of granular, free-flowing, or semi-free-flowing products. It features One/two/Four linear vibratory feeders that independently control the flow of product into load cell-equipped weigh hoppers. Once the desired weight is achieved, the product is discharged into bags, containers, or pouches.
This machine is ideal for small to medium packaging operations, offering high accuracy, fast changeovers, and ease of use. Its compact and modular design allows for seamless integration with packaging lines such as pouch packing, jar filling, and container filling systems.
Applications
Ideal for filling a wide range of free-flowing and semi-free-flowing products, such as:
- Grains (rice, wheat, pulses)
- Seeds (sunflower, mustard, vegetable seeds)
- Dry fruits and nuts
- Snacks (chips, puffed rice, namkeen)
- Sugar, salt, and spices
- Tea and coffee beans
- Dry powders
- Pet food
Standard Features
- independent weighing heads for better speed and accuracy
- High-precision load cells for accurate weighing
- User-friendly touch screen HMI with recipe storage
- Easy-to-clean stainless steel contact parts (SS304 or SS316)
- Vibration intensity control for different product types
- Automatic tare correction and error compensation
- Compact and modular design for easy integration
- Low maintenance and energy-efficient operation
- Optional integration with automatic pouch or container filling machines
- Supports manual or footswitch operation if required
Technical Specification
| Model | TLW-1H | TLW-2H | TLW-4H |
|---|---|---|---|
| Machine Name | Single Head Linear Weigh Filler | Double Head Linear Weigh Filler | Four Head Linear Weigh Filler |
| No. of Heads | One | Two | Four |
| No. Of Discharge | One | One | One |
| Weighing Range | 10 g TO 500 g / 500 g TO 5000 g (Optional) | ||
| Accuracy | ± 0.5 % TO 1 % * | ||
| Speed | Up to 7-8 Fill per Minute* | Up to 10-15 Fills per Minute* | Up to 30-35 Fills per Minute* |
| Product Hopper Volume | 75 Ltr (Customizable) | 125 Ltr (Customizable) | 125 Ltr (Customizable) |
| Weighing Hopper Volume | 1.2 Ltr per Hopper / 3.6 Ltr per Hopper / 6 Ltr per Hopper | ||
| Power Requirements | 230V AC, Single Phase, 50Hz | ||
| Machine Material | SS 304 / SS 316 (Contact Parts) | ||
| Control System | PLC with Touch Screen HMI | ||
| Notes | * Output Depends Upon Product Characteristics (E.g – Density, Moisture, Flowability, Etc..) | ||
