01
Product Overview

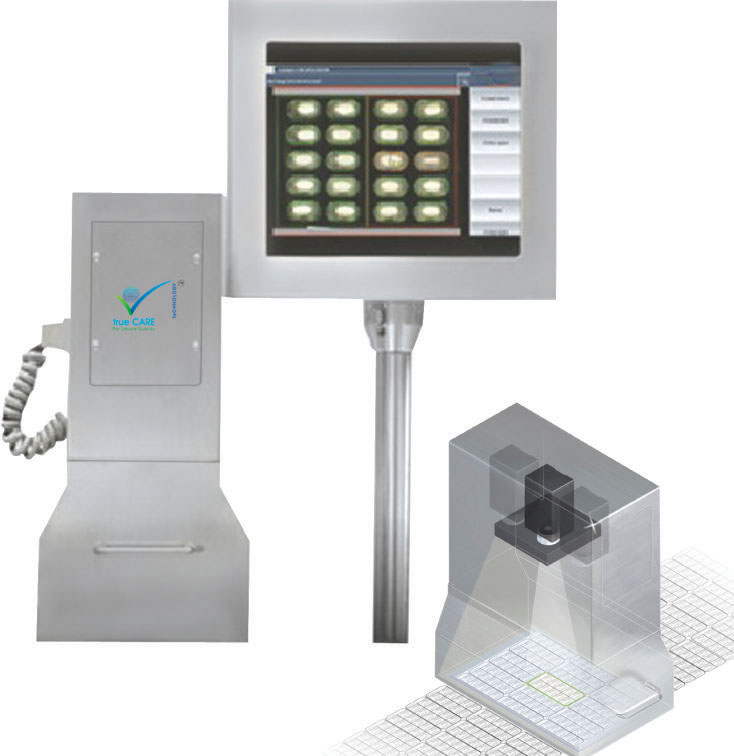

The TrueCare Blister Inspection System is a camera inspection system mounted on the blister packing machine, inspecting every pocket before sealing. It detects empty pockets, broken, chipped or half tablets, double tablets, wrong colour or wrong product, open or dented capsules and foreign particles. Defective blisters are tracked through the machine and rejected at the punching station, so only fully correct strips reach the carton. Easy product teaching, recipe storage and reject statistics make it suitable for pharmaceutical and nutraceutical blister lines (Alu-PVC and Alu-Alu, confirm).
02
Applications
A Blister Inspection System is an advanced machine vision and sensor-based quality control solution designed to inspect pharmaceutical and medical blister packs (containing tablets, capsules, pills, or soft gels) before they leave the packaging line.
These systems use high-resolution industrial cameras, specialized lighting, and intelligent software algorithms to check every single pocket of a blister sheet for structural integrity, correct product placement, and safety compliance.
Primary Applications
- Pharmaceutical & Nutraceutical Manufacturing:
- Tablet & Capsule Presence/Absence: Detecting empty pockets (missing pills) in a blister strip caused by feeder skips or bridged tablets before they reach secondary cartoning.
- Broken or Damaged Product Detection: Identifying cracked, chipped, broken, or half-filled tablets and capsules trapped inside the sealed foil pocket.
- Colour & Shape Verification: Ensuring the correct medication, dosage strength, or color-coded pill is placed in the designated cavity, preventing dangerous product mix-ups on multi-product lines
03
Standard Features
- High Resolution industrial camera with specially developed illumination
- SS cabinet panel as per GMP compliance
- High speed input output system with ejection mechanism
- 3 color tower light for indication status of the system
- Compact mounting fixates and assembly
- IPC with touch screen for ease of access
- New compact UI
- Auto teach and Auto tolerance setting
- Auto correction for foil change over
- Challenge test report
- 21 CFR Part 11 compliant software
- Report generation tool can generate audit trial and production report
04
Technical Specifications
| Parameter | Specification |
|---|---|
| Tablet Pack | Single/Multi color, Sandwich, Coated, white on white |
| Capsules Pack | SIngle/Multi color, Granules, Gelatine, Printed, HPMC, Pullulan, Enteric coated |
| Types of Defect Detect | Missing, Broken, Color variation, Foreign particles, Extra tablets/capsules, Black spot, chipped |
| Inspection Speed | 1000 Blister per min (Higher speed may be available depending on application) |
| Minimum Defect Size | 0.3 mm | 0.012” |
| Controller | Desktop PC’s/Industrial embedded single board computer |
| Camera Configuration | 1 Camera – 100% Top coverage (more cameras can be configured as per application & product dimension) |
| Image Processing | All images from all cameras are read, enhanced and analysed, resulting in 100% product coverage along product dimensions at the maximum line speed |
| Display | Desktop Monitor/Industrial embedded HMI |
| Operating System | Windows® |
| Warranty | 12 months parts and labour |
| Power Supply | AC 220V , 50/60 Hz |
